VELOBIKE

Velobike Elite Longboi Stem

Velobike Elite Longboi Stem

VELOBIKE


Regular price $186.00
Regular price Sale price $186.00
Sale SOLD OUT
Shipping calculated at checkout.
Length
Angle

Low stock: 3 left

View full details

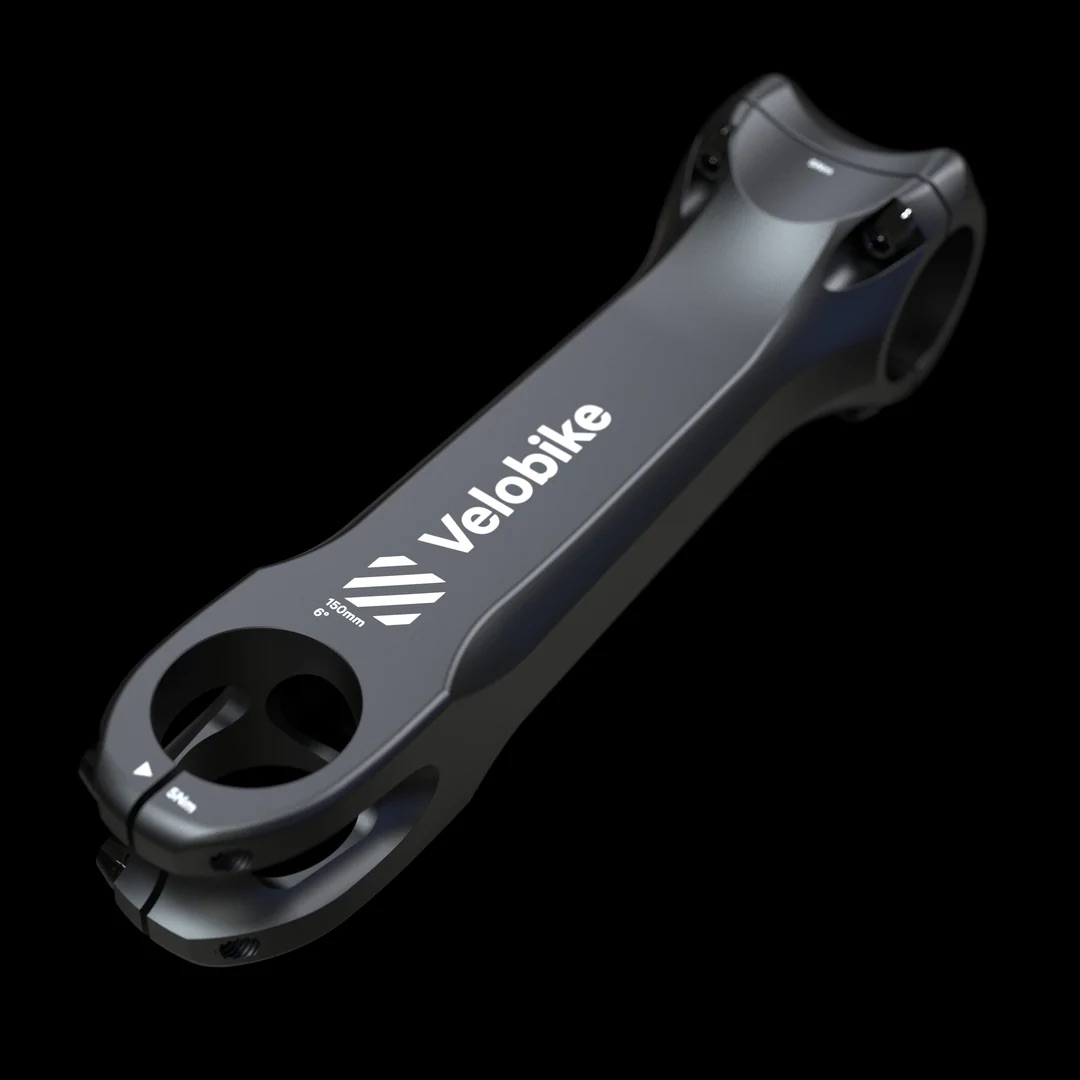

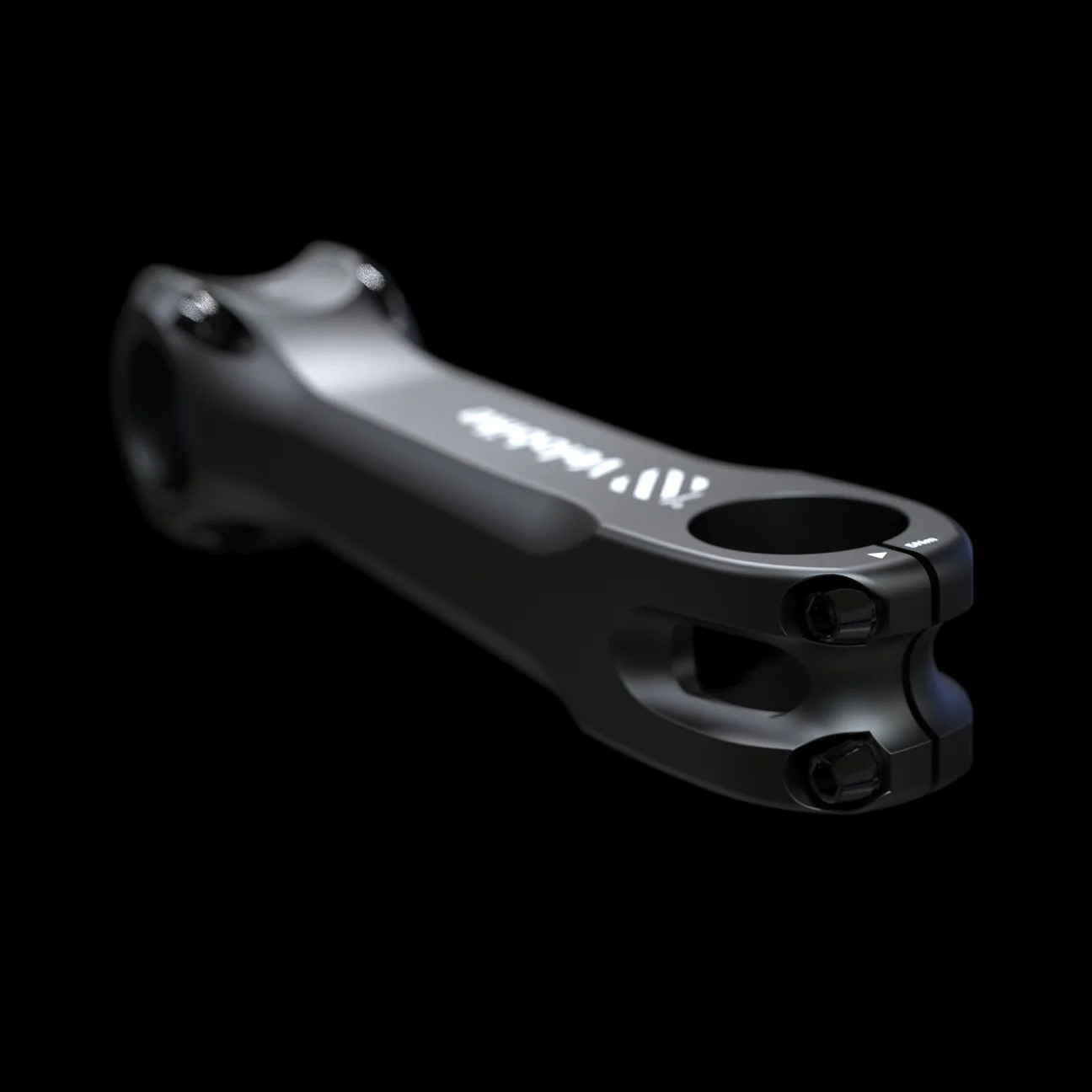

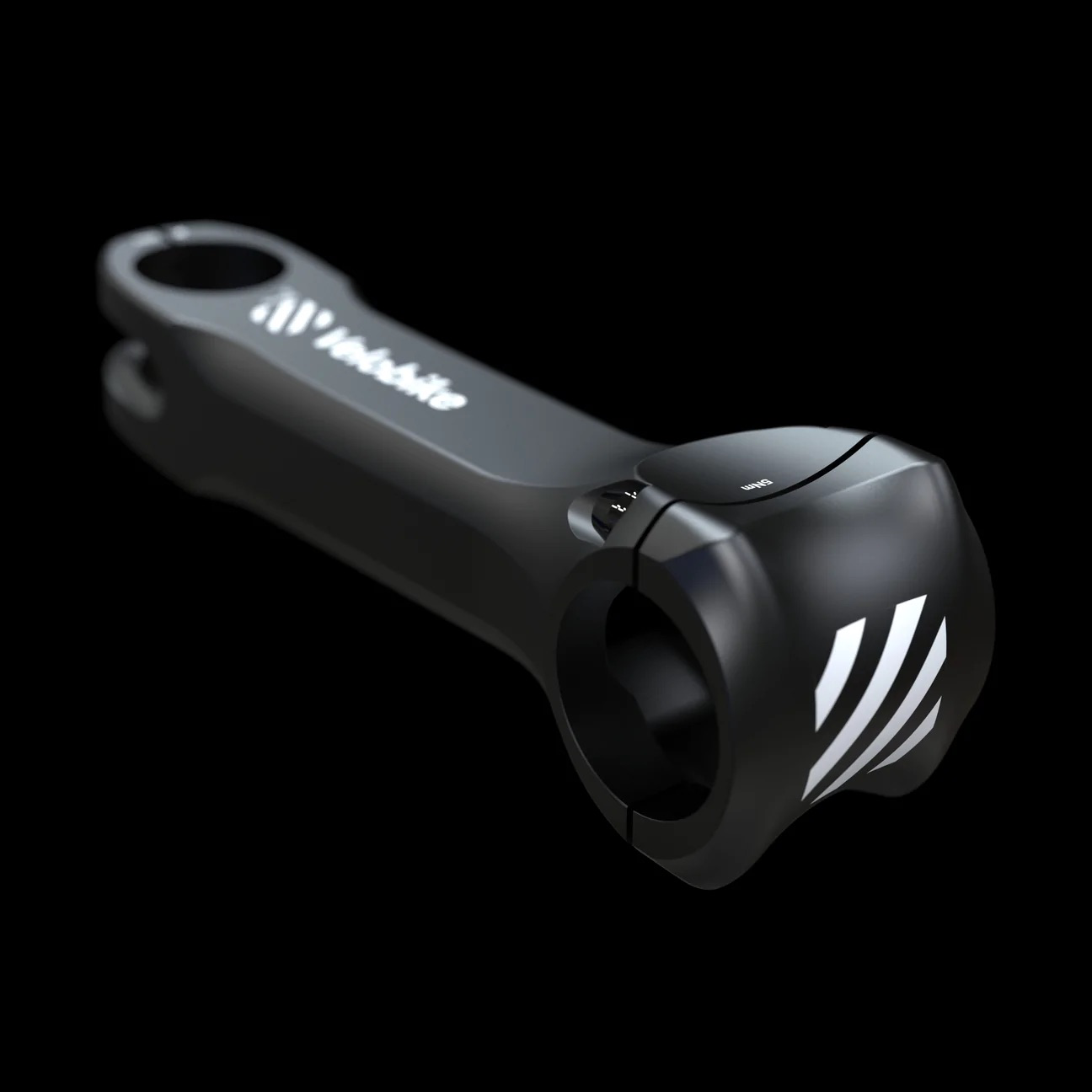

Developed by Velobike in New Zealand, the Elite Longboi Stem provides the most aerodynamic position in the UCI geometry regulations.

Length (mm) Angle Weight (g)
120 ±6° 232.5
120 ±12° 228.0
120 ±16° 227.0
130 ±6° 241.5
130 ±12° 239.5
130 ±16° 237.5
140 ±6° 251.0
140 ±12° 247.5
140 ±16° 246.5
150 ±6° 258.5
150 ±12° 256.0
150 ±16° 256.0
160 ±6° 268.0
160 ±12° 266.0
160 ±16° 265.5
170 ±6° 283.5
170 ±12° 277.5
170 ±16° 275.0
180 ±6° 303.5
190 ±6° 298.5
200 ±6° 329.5

Specifications:

  • 250 Keirin certified
  • ISO 4210-5:2014 certified (tested to 2x the ISO requirements)
  • Registered for JKA250 Japanese Keirin racing
  • UCI certified for competition use
  • 120mm, 130mm, 140mm, 150mm, 160mm 170mm, 180mm, 190mm and 200mm lengths
  • +/-6, +/-12 or +/-16 degree angle options (only +/-6 degrees in 180mm, 190mm and 200mm lengths
  • Reversible mounting capability (angled up or downward)
  • Aero design developed using CFD software
  • Rear mounted stem cap bolts for reduced aerodynamic drag
  • Titanium hardware for weight reduction
  • Low profile steerer tube clamp for greater integration with notched headtube framesets
  • Material: Hard anodised 7075-T6 aluminium
  • Steerer diameter: 1-1/8th
  • Bar clamp diameter: 31.8mm
  • Bar clamp width: 48mm
  • Steerer clamp stock height: 32mm
  • 5Nm Fastening Torque (Ensure use of a torque wrench)

The Elite Longboi Stem is the stiffest stem Velobike has ever tested. Co-designed with the Cycling New Zealand team for Tokyo 2020, New Zealand's Ellesse Andrews won silver with the stem in the women's keirin at the Olympics.

Notes
*Please measure your handlebar position before purchasing the Elite Longboi Stem. Some frameset and handlebar combinations may exceed the 100mm reach limit of UCI regulations.
